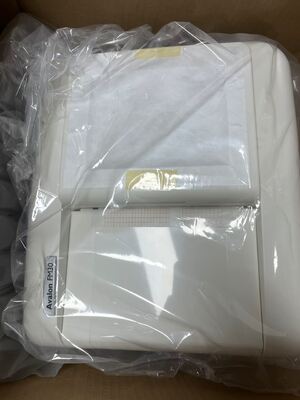

Philip FM20 FM30 PN M2703 Fetal Parts for medical equipment
Produktdetails:
| Herkunftsort: | Original |
| Markenname: | philip |
| Modellnummer: | FM20 FM30 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | Negotiation, pls contact me |
| Verpackung Informationen: | Karton |
| Lieferzeit: | Innerhalb von 1-2 Werktagen nach Bestätigung der Zahlung |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 10 |
|
Detailinformationen |
|||
| Zustand: | ausgezeichnet neu | Garantie: | 3 Monate |
|---|---|---|---|
| price: | negotiable | Aktien: | Verfügbar |
| Hervorheben: | M2703 fetal parts,PN M2703 Fetal Parts,FM30 PN M2703 Fetal Parts |
||
Produkt-Beschreibung
Philips Avalon FM20/FM30 Fetal Monitor | English Technical Specifications
Product No. FM20: M2702A; FM30: M2703A
Core Functions & Key Differences
表格
| Feature | FM20 | FM30 |
|---|---|---|
| Primary Use | Antepartum (external monitoring) | Intrapartum (external + invasive) |
| Fetal HR | Ultrasound (US) | US + Direct ECG (DECG) |
| Uterine Activity | Toco (external) | Toco + Intrauterine Pressure (IUP) |
| Maternal ECG | MECG | MECG + DECG print |
| Optional Maternal | NIBP, SpO₂ (FM30 only) | NIBP, SpO₂ |
Physical & Environmental
| Parameter | Spec |
|---|---|
| Dimensions (W×H×D) | 286 × 133 × 335 mm (11.3 × 5.2 × 13.2 in) ±1% |
| Weight | 5.1 kg (11.2 lbs); 5.3 kg (11.7 lbs, w/battery) |
| Power | 100–240 VAC ±10%, 50–60 Hz; 0.4–0.7 A |
| Battery | Min. 4 hrs (optional); Internal Smart Battery M4605A |
| Operating Temp | 0–45 °C (no battery); 0–40 °C (w/battery) |
| Storage Temp | -20–60 °C (excl. paper) |
| Humidity | Operating <95% @ 40 °C; Storage <90% @ 60 °C |
| Altitude | Operating -500–3000 m; Storage -500–13100 m |
Fetal Monitoring Performance
表格
| Parameter | FM20/FM30 (US) | FM30 Only (DECG) |
|---|---|---|
| FHR Range | 50–240 bpm | 40–210 bpm |
| Resolution | Display: 1 bpm; Printer: 0.25 bpm | 1 bpm |
| Accuracy | Jitter ≤3 bpm @ 200 bpm | ±2 bpm (typical) |
| Alarm Limits | Brady: 60–200 bpm (default 110); Tachy: 110–240 bpm (default 170) | Brady: 70–210 bpm; Tachy: 110–240 bpm |
| Alarm Delay | 10–300 s (adjustable) | 10–300 s |
| US Frequency | 1 MHz ±100 Hz | — |
| US Intensity | Iₒᵦ: (2.38±0.59) mW/cm²; Iₛₚₜₐ: (15.0±3.2) mW/cm² | — |
| Twin/Triplet | Standard / Optional | Standard / Optional |
Toco & IUP (FM30)
表格
| Parameter | Spec |
|---|---|
| Toco Method | Strain Gauge |
| Toco Range | 0–400 units |
| Toco Resolution | 1 unit (display); 0.25 unit (print) |
| IUP Range | -100–300 mmHg |
| IUP Resolution | 1 mmHg (display); 0.25 mmHg (print) |
| IUP Accuracy | ±0.5% per 100 mmHg |
| Maternal Pulse from Toco | 40–240 bpm, ±2% or 1 bpm (whichever greater) |
Maternal Vital Signs
表格
| Parameter | Spec |
|---|---|
| MHR (MECG) | 30–240 bpm; ±1 bpm or 1% (whichever greater) |
| NIBP (Optional) | Sys: 30–270 mmHg; Dia: 10–245 mmHg; Mean: 20–255 mmHg; Accuracy ±5 mmHg (mean error) |
| SpO₂ (FM30 only) | 0–100%; Accuracy: 2–3% (70–100%) |
| MECG Filter | 0.8–80 Hz |
Interfaces & Storage
表格
| Interface | Spec |
|---|---|

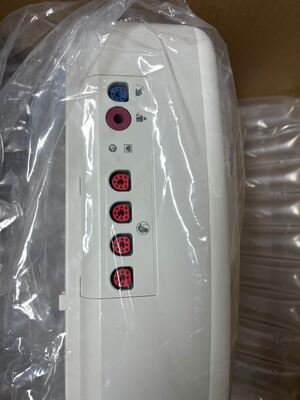

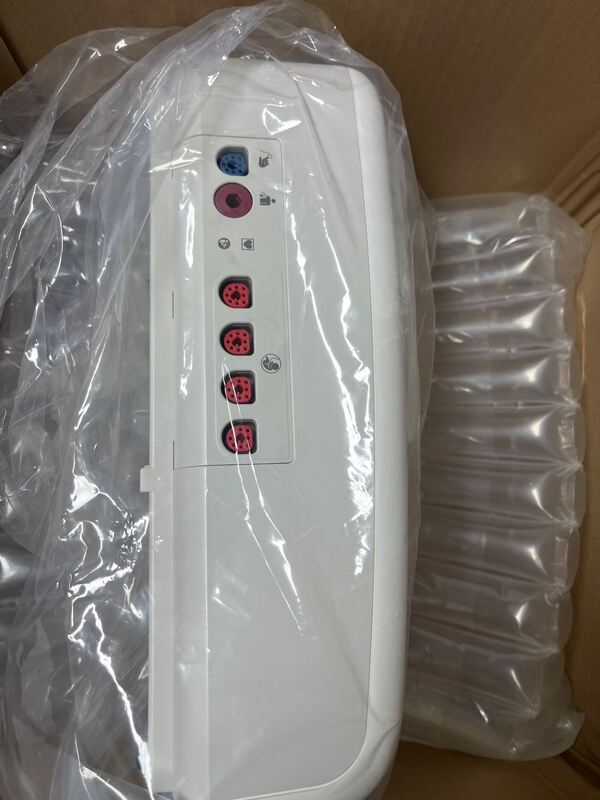

| Standard | USB, Transducer Sockets (2× Avalon CL) |
| Optional | RS-232, LAN (dual port), PS/2 |
| Data Buffer | ≥7 hrs (trace) |
| Recorder | 6" thermal array; paper-out warning; paper save mode |
Standards & Compliance
- Safety/Performance: IEC 60601-1:2005+A1:2012 / EN 60601-1:2006+AC:2010; IEC 60601-2-37:2007 / EN 60601-2-37:2008
- EMC: IEC 60601-1-2:2007 / EN 60601-1-2:2007+AC:2010; Emissions Class B (Class A with M2738A module)
- NIBP: ANSI/AAMI SP10-1992; IEC 80601-2-30:2010 / EN 80601-2-30:2010
- SpO₂: ISO 80601-2-61:2011 / EN 80601-2-61:2011
Display & Alarms
- Screen: 6.5" (16.51 cm) color TFT touchscreen
- Alarms: Physiological/Technical; Audible/Visual; Latching/Non-latching; Pause (1–3 mins or indefinite)
Notes
- FM30 exclusive: DECG/IUP monitoring, SpO₂, and 6-second MECG/DECG snapshot printing.
- All specs subject to option configuration; refer to Philips official docs for full compliance.
